SANAN LEDs ADC12 Die-castTriac dimmable , 0-10V dimmable , dali dimmable and non-dimmable option Aluminum Housing

Product Categories
Power Real CO.,Limited
Contact Now

SANAN LEDs ADC12 Die-castTriac dimmable , 0-10V dimmable , dali dimmable and non-dimmable option Aluminum Housing

  • 1
  • 2

Brand Name : Power-Real

Model Number : PR-SF0203

Certification : CE RoHS

Place of Origin : China

MOQ : 50Pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Material : Aluminum

Contact Now

Features :

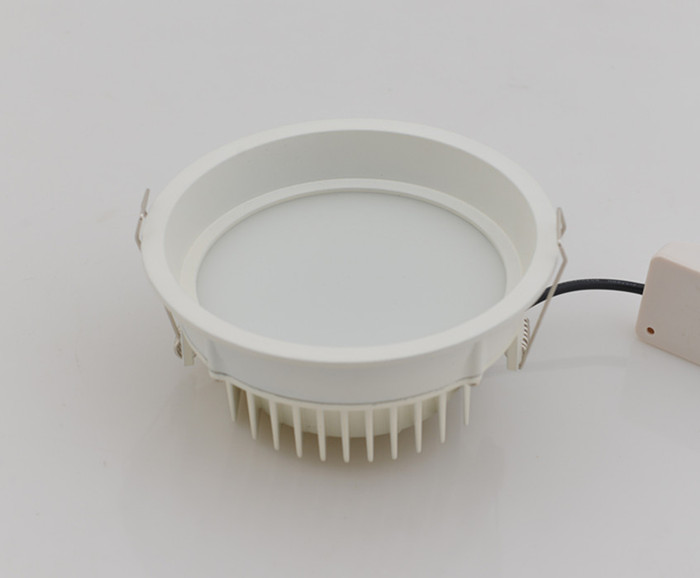

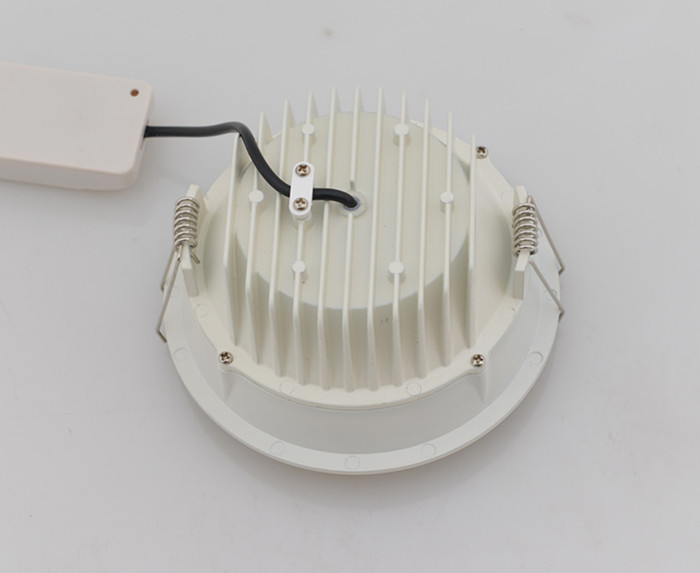

SMD LED Downlight

1.SANAN LEDs

2.5 years warranty LiFud driver

3.Aluminum Housing : ADC12 Die-cast

4.Triac dimmable , 0-10V dimmable , dali dimmable and non-dimmable option

5.Voltage : 200-240VAC , 100-270VAC

6.LM-80 approved , 90-100LM/W

7.CCT : 2700K ,3000K , 4000K , 5000K , 5700K , 6500K

8.IP Rate : IP54

9.UL/TUV/SAA/CB/CE Certificate

Specification :


Model		 LED Lumen Power Voltage Beam angle Size (mm) Cuthole (mm)
PR-SF0203-5 30 LEDs SANAN 0.2W 2835 350 lm 5 W 220-240V
100-277V		 120° Ø100*52 Ø90(3.54")
PR-SF0204-8 54 LEDs SANAN 0.2W 2835 560 lm 8 W 220-240V
100-277V		 120° Ø135*62 Ø125(4.92")
PR-SF0205-12 72 LEDs SANAN 0.2W 2835 840 lm 12 W 220-240V
100-277V		 120° Ø150*69 Ø140(5.51")
PR-SF0206-15 90 LEDs SANAN 0.2W 2835 1050 lm 15 W 220-240V
100-277V		 120° Ø180*70.5 Ø170(6.69")
PR-SF0208-20 120 LEDs SANAN 0.2W 2835 1600 lm 20 W 220-240V
100-277V		 120° Ø215*78.5 Ø200(7.87")
PR-SF0210-30 180 LEDs SANAN 0.2W 2835 2400 lm 30 W 220-240V
100-277V		 120° Ø280*83 Ø260(10.24")
