ADC12 Die-cast Aluminum Housing SANAN LEDs DALI dimmable LiFud driver 200-240VAC , 100-270VAC

Product Categories
Power Real CO.,Limited
Contact Now

ADC12 Die-cast Aluminum Housing SANAN LEDs DALI dimmable LiFud driver 200-240VAC , 100-270VAC

  • 1
  • 2

Brand Name : Power-Real

Model Number : PR-SF1703

Certification : CE RoHS

Place of Origin : China

MOQ : 50Pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Material : Aluminum

Contact Now

Features :

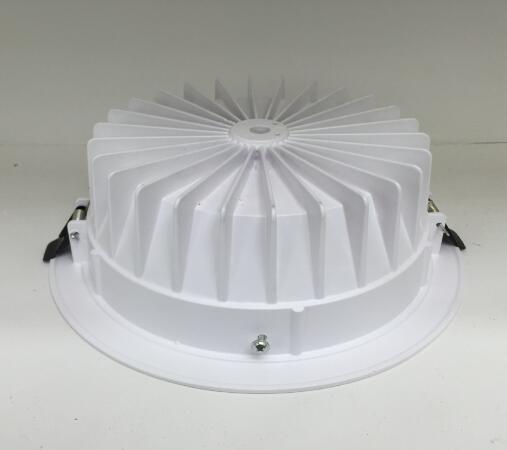

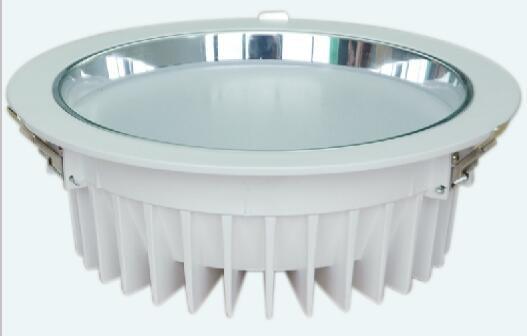

Round DALI LED Downlight

1.SANAN LEDs

2.LiFud driver

3.ADC12 Die-cast Aluminum Housing

4.DALI dimmable

5.Voltage : 200-240VAC , 100-270VAC

6.LM-80 approved , 90-100LM/W

7.Exact CCT : 2700K-6500K

8.High CRI > 80Ra , CRI > 90

9.5 years warranty

10.UL/TUV/SAA/CB/CE Certificate

Specification :


Model		 Led Lumen Power Voltage Beam angle Size (mm) Cuthole (mm)
PR-SF1703-5 10 LEDs SANAN 0.5W 2835 350 lm 5 W 220-240V
100-277V		 120° Ø100*H55 Ø90(3.54")
PR-SF1735-8 18 LEDs SANAN 0.5W 2835 560 lm 8 W 220-240V
100-277V		 120° Ø115*H55 Ø100(3.94")
PR-SF1704-10 20 LEDs SANAN 0.5W 2835 700 lm 10 W 220-240V
100-277V		 120° Ø130*H67 Ø120(4.72")
PR-SF1705-12 24 LEDs SANAN 0.5W 2835 840 lm 12 W 220-240V
100-277V		 120° Ø160*H75 Ø145(5.71")
PR-SF1755-15 36 LEDs SANAN 0.5W 2835 1050 lm 15 W 220-240V
100-277V		 120° Ø180*H75 Ø160(6.30")
PR-SF1706-20 48 LEDs SANAN 0.5W 2835 1600 lm 20 W 220-240V
100-277V		 120° Ø190*H75 Ø175(6.89")
PR-SF1707-20 48 LEDs SANAN 0.5W 2835 1600 lm 20 W 220-240V
100-277V		 120° Ø200*H80 Ø180(7.09")
PR-SF1708-25 60 LEDs SANAN 0.5W 2835 2000 lm 25 W 220-240V
100-277V		 120° Ø230*H85 Ø210mm(8.27")
PR-SF1710-30 60 LEDs SANAN 0.5W 2835 2400 lm 30 W 220-240V
100-277V		 120° Ø300*H100 Ø260mm(10.24")
